Integrated Vibration Transmitter
● Measurable physical quantity：vibration speed、vibration displacement
● Operating voltage: +12~+24V DC
● Measuring range : 0-100 mm/s；0~2000μm
● Analog output : 4-20 mA
● Frequency range : 10-1,000 Hz
● 2-wire connection technology
● Application：Widely used in rotating machinery, such as fans, pumps, compressors, steam turbines, etc. in the power, steel, petrochemical and other equipment
Send Inquiry
Product Introduction

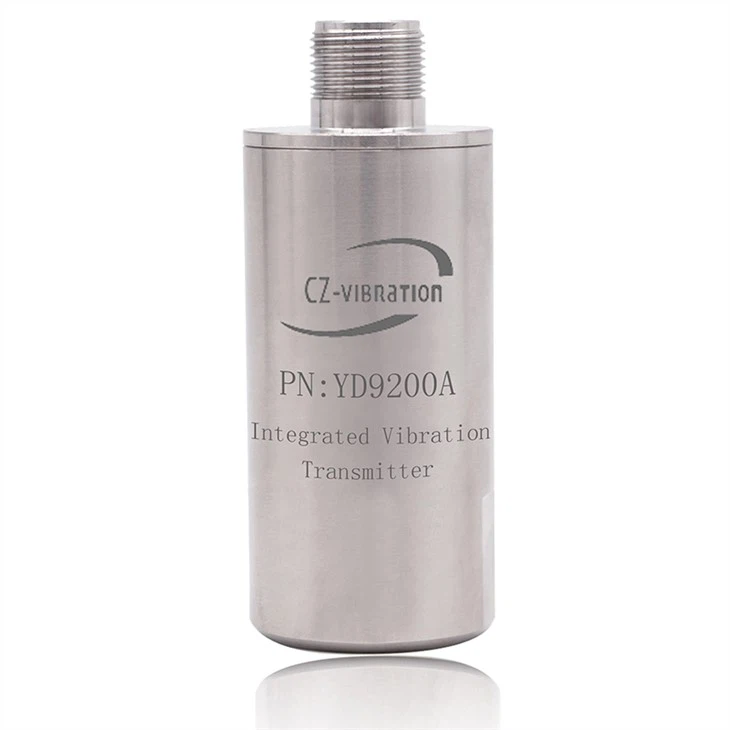

YD9200A integrated magneto-electric vibration transmitter is the exclusive first product of the company. It adopts imported detector and the measuring range is twice that of the same type of product ;
It has strong anti-interference ability, stable and reliable current output, the industry's smallest series of products, and easy installation.
According to the vibration frequency range of the equipment,we can customized the high-precision product for customer ; the outer casing is made of stainless steel 316 material, which has strong corrosion resistance.
4-20mA standard analog signal output, ensuring current is not attenuated, smaller loss, more precise measurement.
 Integrated Vibration Transmitter |  Vibration Transmitter |  YD9200A Integrated Vibration Transmitter |
Production process
The YD9200A is a two-wire magneto-electric vibration sensor, consisting of permanent magnets (magnets), coils, springs, metal frames and housings.As a kind of machine-electric energy conversion type sensor,YD9200A does not need power supply, with simple circuit, stable performance, strong output signal, small output impedance, and a certain frequency response range. It is suitable for vibration, speed, torque and other measurements.
| Further information | |
| Features and Advantages | |
| Ⅰ | Strong anti-interference ability |
| Ⅱ | stable and reliable current output |
| Ⅲ | Superior corrosion resistance |
| Ⅳ | Lightweight, easy to install |
| Ⅴ | Low linearity error and high precision |
| Applications | |
• Fans 、Blowers、 Motors、 • Compressors、Centrifuges • Centrifuges、Turbochargers • Pumps、Generators、 Gear Box • Engines | |
| Service | |
| Instant reply | professional business team is available 24 hours online to serve you |
| Product warranty period | up to 18 months |
| Minimum order quantity | 1 sample quantity, convenient for you to test product |
| Fast delivery strategy | sufficient inventory. It will take 3-5 working days after receivin your advance payment if items are in stock. |
| Customized service | according to your requirements, different application, different parameters, product customization is available |
| Great after-sales service | any condition affecting the use of the product during the warrant period will be replaced free of charge with NO EXCUSE. We guarantee unconditional technical support for life. |
| Technical details | |
| General data | |
| Design | Vibration transmitter |
| Sensor type | Magnetoelectric |
| Measuring range | (vibration speed)0-100 mm/s |
| (vibration displacement)0~2000μm | |
| Frequency range | (vibration speed) 10Hz~1000Hz |
| (level)4.5Hz~1000Hz | |
| (vertical)2~300Hz | |
| resolution | 0.05% |
| weight | about 500g |
Installation method | Thread mounting or Magnetic suction |
Lead way | Lead way |
| Electrical data | |
| Operating voltage | +12~24 V |
| Type of voltage | DC |
| Output function | 4-20 mA |
load resistance | ≤500Ω |
| Mechanical data | |
| Mounting type | Threaded male M8 x 1.25 and 1/4 "-28 UNF M10*1.5 ； |
| Connection | M10*1.5 connector M10*1 connector |
| Material | Stainless steel 316L |
| Ambient conditions | |
| Ambient temperature min. | -40 °C |
| Ambient temperature max. | 85°C |
temperature drift | ≤0.1%/℃ |
PDF Download | |
| Specification selection | ||||
| YD9200A-A□□-B□□(V/D)-C□□-D□□-E□□ | ||||
A、installation direction | B、measuring range | C、Mounting thread | D、Cable length | E、Lead way |
01:level 02:vertical 03:universal | V:Vibration speed 01:0--10mm/s 02:0--20mm/s ..... 09:0--90mm/s D:Vibration displacement 01: 0-100μm 02: 0-200μm ..... 09: 0-900μm | 01:M10*1 .5 02:M5*0.8 03:M8*1.25 04:1/4~28 05: Magnetic base 06:Special customized | 01:1m 02:2m ..... 10:10m | 00(k):Directly leadK:means armoured01: Aviation plug |
