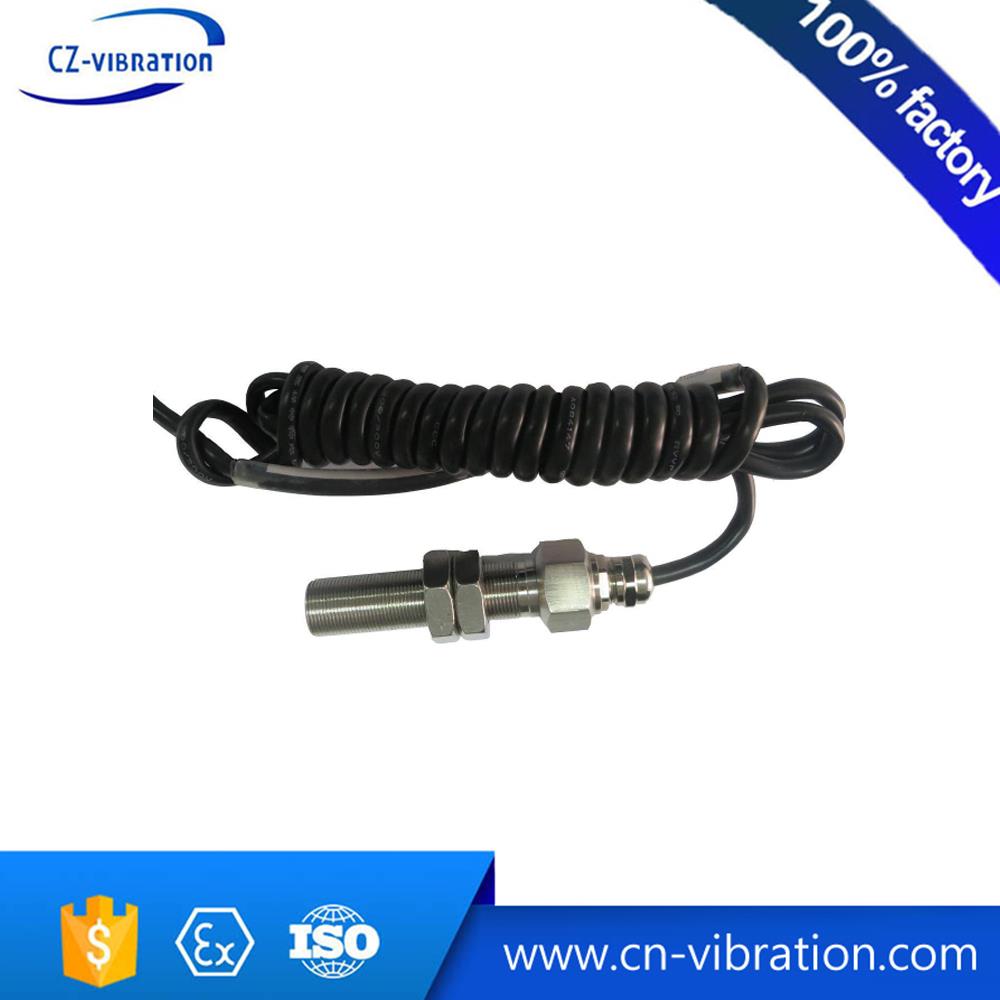

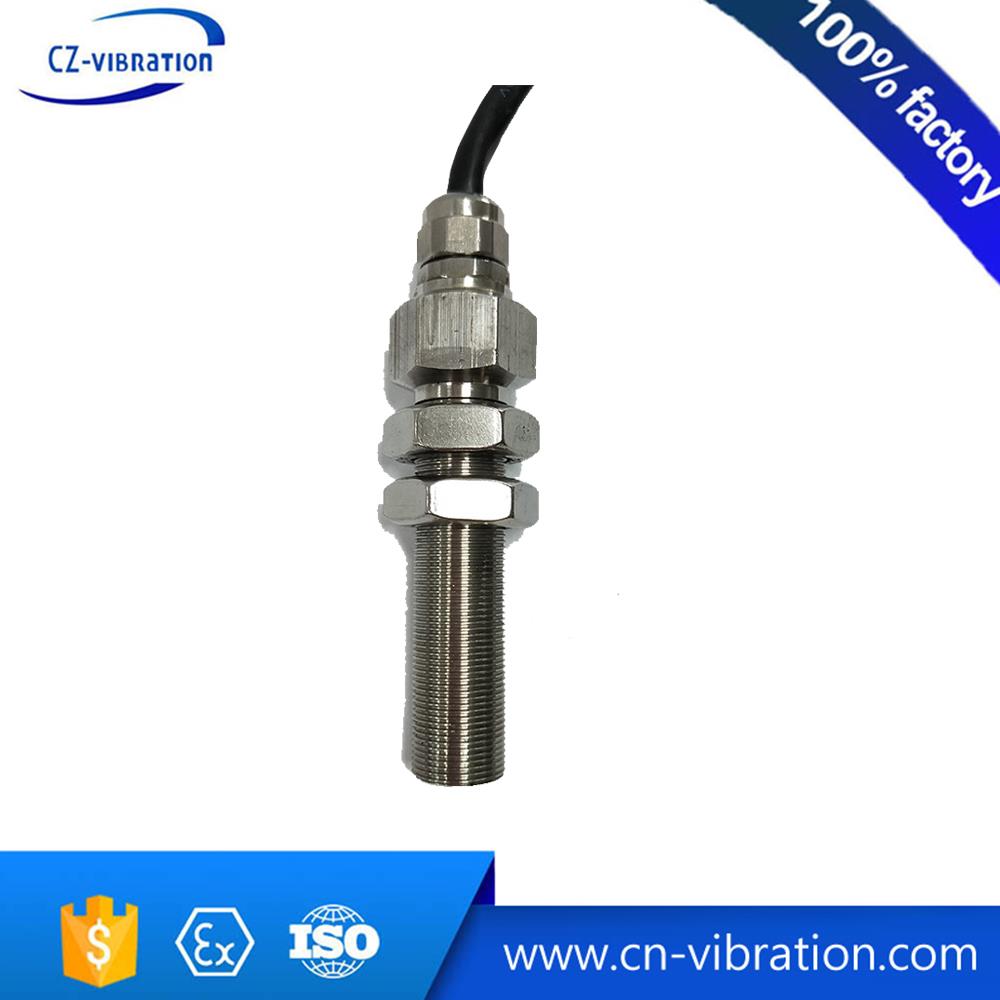

YD63 integrated speed transmitter adopts analog circuit design and hall element; Compact structure, wide frequency response and strong anti-interference ability, an integrated three-wire current type transmitter. The precision circuit for vibration signal acquisition, frequency conversion, amplification, shaping,voltage signal converte to 4~20mA standard signal. The “4-20mA” current signal is directly connected to PLC or DCS, widely used for continuous measurement of various rotating speeds.

Technical details
Frequency response	0 ~ 20 kHz
Supply voltage	+12~+26V (DC)
Load resistance	≤750Ω
Detection distance	0.5-2.0mm (A3 steel, electrical steel； if it is magnetic steel, the installation distance is 6-10mm, the magnetic steel polarity installation should be consistent)
Gear modulus	m≥1 Gear material：A3 steel, electrical steel 120 ° C
Output signal	4-20Ma, 0-20mA, 0-5V, 1-5V (Example: Current "4 ~ 20mA" corresponding speed: 0 rev / min ~ "range upper limit" speed, (sensor fixed factory)
Temperature range	-10 to +80 °C
Protection level	IP68
Installation thread	M16×1 (or custom)
Power consumption current	≤10mA (excluding load current)
Transmission error	≤1%
Temperature drift	<0.1%
Housing material	stainless steel 304
Load equivalent resistance range	≤ 600Ω (current output)	≥3000Ω (voltage output)

Further information
Features and Advantages
1	Non-contact detector, no moving parts, no wear
2	long safety life and low maintenance cost
3	Integrated screw structure, easy to install
4	the wiring is simple, current 4-20mA output, load short circuit natural protection.
Applications
	YD63 three-wire integrated speed transmitter is widely used in the field of speed measurement of petroleum, electric power and aviation. Also includes rotating gears with gears such as motors, compressors, pumps, and steam turbines.
Services
Minimum order quantity	1 sample quantity, convenient for you to test product
Product warranty period	up to 18 months
Instant reply	professional business team is available 24 hours online to serve you
Fast delivery strategy	sufficient inventory. It will take 3-5 working days after receiving your advance payment if items are in stock.
Customized service	according to your requirements, different application, different parameters, product customization is available
Great after-sales service	any condition affecting the use of the product during the warranty period will be replaced free of charge with NO EXCUSE. We guarantee unconditional technical support for life.

YD63-A□□-B□□-C□□-D□□-E□□-F□□-G□□S
A.thread mounting	B.Shell length	C.Lead way	D.output	E.cable length	F.range	G.cable length
01：M161 02：M181.5 03:Special customized	80:80mm ..... 120:120mm	00(k):Directly lead K:means armoured 01: Aviation plug	01：4~20mA 02:0~5V 03:1~5V	001：one 002：two 003：three .......	10:10r/min ...... 1000:1000r/min	01:1.0m 02:2.0m 03:3.0m ..... 09:9.0m
