The YD66 portable bluetooth vibrometer is based on the industrial Internet of Things technology and deeply integrates traditional data collection and wireless communication technology. It can be widely used in power, chemical, cement, water and other industrial dynamic equipment monitoring and equipment status evaluation. It becomes a "good helper" in the maintenance of enterprise equipment assets.

Product Features

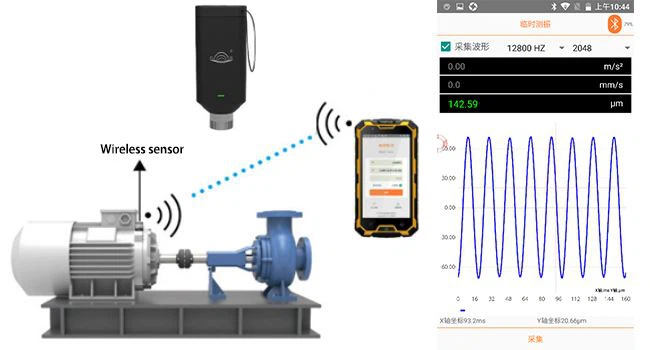

1. Vibration measurement

The failure rate of vulnerable parts such as no cables and plugs has been greatly reduced

Vibration measurement

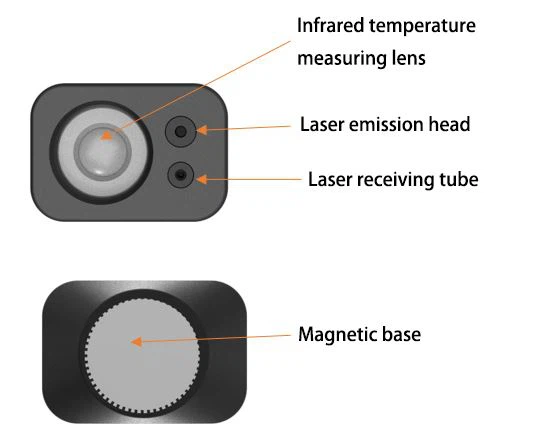

2. Infrared temperature measurement

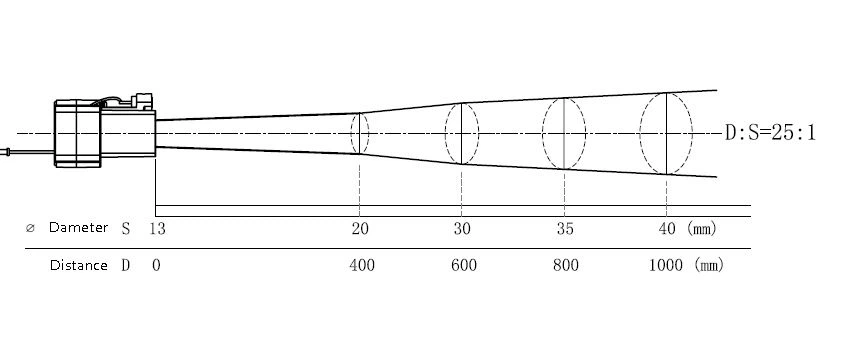

Distance factor: 25:1

Measuring range: －32～420℃ Laser beam assisted positioning

Measurement accuracy: ±1℃ or 1%, whichever is greater

Emissivity 0.1～1.0 adjustable, the default emissivity is 0.95

Response time: 500 ms

Infrared temperature measurement

3. Laser speed measurement

In the laser reflection method, a reflective sheet needs to be pre-attached to the shaft of the device

Laser speed measurement

4. Wireless charging

Wireless charging avoids plugging failures and has a high degree of protection. Fully charged and used continuously for 20 hours.

Technical details
Power supply	Built-in 3. 7V lithium battery, 600mAh, fully charged and continuous working for 20h
Communication method	Bluetooth 4.2
Installation method	Magnetic base
Protection	Protection type	Conventional type: None; Explosion-proof type: Exib IIC T5 Gb
Protection	Protection level	IP66
Exterior	Material	Stainless steel; plastic
Exterior	Size; weight	33x40x90mm; 150g
Vibration measurement characteristics	Measuring range and accuracy	Acceleration 0~200. 0m/s2 (Peak)(±5%)
		Velocity 0~200. 0 mm/s(RMS)(±5%)
		Displacement 0~2000μm (P-P)(±5%)
	Frequency response	Acceleration 10Hz~2KHz
		Velocity 10Hz~1KHz
		Displacement 10Hz~1KHz
	Sampling frequency	5120Hz (12800Hz optional)
Temperature measurement characteristics	Temperature range and accuracy	Measuring range: -32~420℃
		Test distance factor: 25:1
		Response time: <500ms
		Measurement accuracy: ±1℃ or 1%, whichever is greater
		Transmit: 0. 1~1. 0 adjustable
	Temperature measurement method	Non-contact infrared temperature measurement
Measuring speed characteristics	Measuring range	50 ~ 8000 r / min
	Measuring accuracy	± (0. 02% n + 1) r / min
	Measuring distance	Effective distance within 50cm
RF characteristics	Transmission distance	Reliable transmission within 5 meters
RF characteristics	Antenna	Built-in antenna
Working environment	Operating temperature	－20℃~+70℃

Applications
Industrial automation	Fans, Blowers, Motors, Compressors, Centrifuges, Turbochargers, Pumps, Generators, Gear Box, Engines, Electricity, Chemical industry, Cement, Water, etc.
Transportation	Speed measurement for cars, Trains, High-speed rails, etc.
Transportation	Bridge health monitoring
Others	Military and aviation fields，etc.

Service
Instant reply	Professional business team is available 24 hours online to serve you
Product warranty period	Up to 18 months
Minimum order quantity	1 sample quantity, convenient for you to test product
Fast delivery strategy	Sufficient inventory. It will take 3-5 working days after receiving your advance payment if items are in stock.
Customized service	According to your requirements, different application, different parameters, product customization is available
Great after-sales service	Any condition affecting the use of the product during the warranty period will be replaced free of charge with NO EXCUSE. We guarantee unconditional technical support for life.
