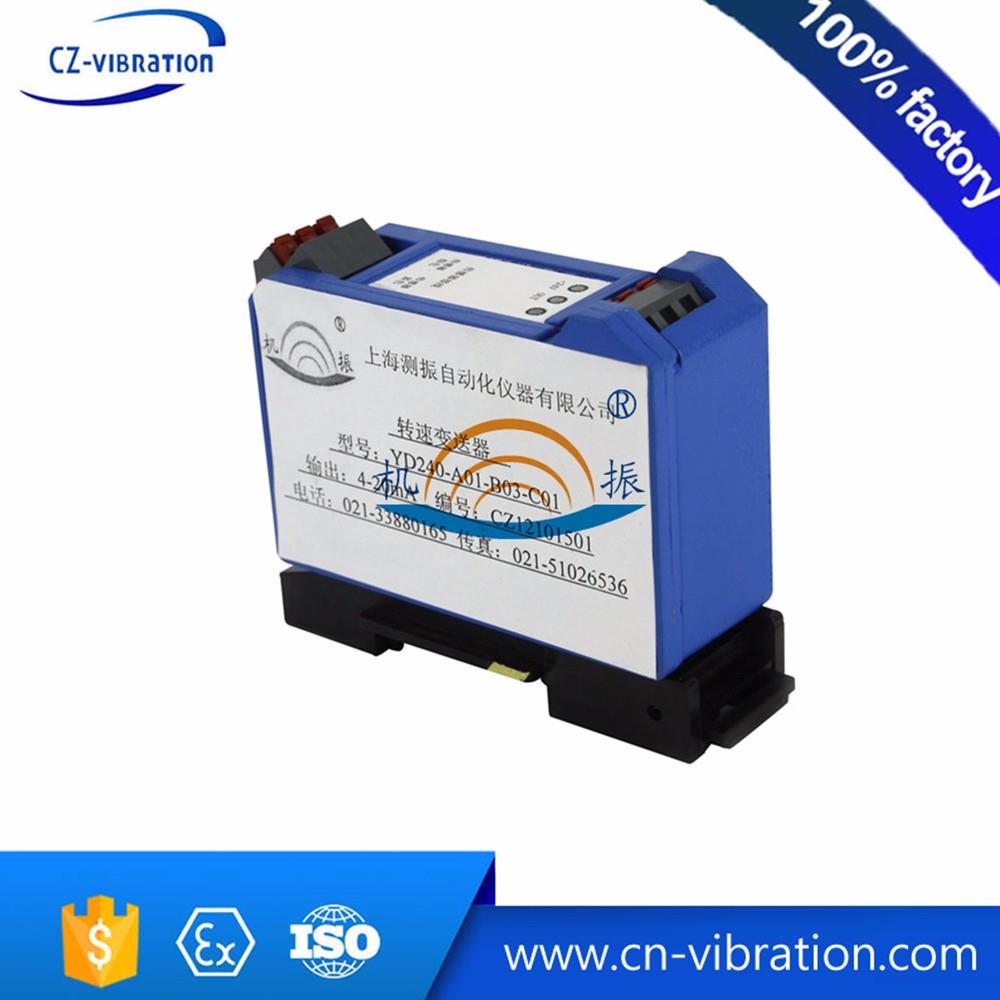

YD240 Speed Transducer
● Set 1-1000 pulses each turn freely. Level 2 alarm control the relay output, the alarm control mode can be flexible setting, all parameters can be set by RS485 communication.
● filter components strictly; 100% the whole aging and testing to ensure high reliability of the transducer.
Send Inquiry
Product Introduction
YD240 speed transmitter can be used with many output instruments of our company and also can be connected to magnetic-electric and other speed transducers.Transmitter uses the unique precision measurement method to ensure the high precision of the whole measuring range, It can distinguish the vibration signal from the larger rotor vibration signal effectively.
Set 1-1000 pulses each turn freely. Level 2 alarm control the relay output, the alarm control mode can be flexible setting, all parameters can be set by RS485 communication; Measured value convert to 4～20mA analog output ; Imported integrated circuits, filter components strictly; 100% the whole aging and testing to ensure high reliability of the transducer.
The shell of transmitter is made of aluminum. In order to shield interference from outside, the shell has been connected with the signal ground in the transmitter. Both the mounting plate and the guide rail cassette are engineering insulation plastics, so it can isolate the transmitter and the earth when install the transmitter.The YD240 speed transmitter can be connected to a computer or PLC for communication and conforms to the RS485 transmission standard. Communication between the transmitter and the computer follows the Modbus-RTU protocol.
 |  |
| Further information | |
Features and Advantages | |
1 | 0.4 Hz to 40 kHz wider frequency range |
2 | imported integrated circuit to convert pulse signal into 4-20mA current signal output |
3 | Built-in "self-test" circuit to monitor sensor and transmitter circuit failures |
Applications | |
YD240 speed transmitter applications include various types of turbomachinery, large and small steam turbines, fans, blowers, compressors, gearboxes, centrifuges, pumps, coal mills and more.YD240 speed transmitter is also suitable for large-scale equipment in power plants, refineries, and chemical plants. It is used in conjunction with modbus and PLC, host computer and network, and is also suitable for independent monitoring of small turbomachines with few points. | |
Services | |
Minimum order quantity | 1 sample quantity, convenient for you to test product |
Product warranty period | up to 18 months |
Instant reply | professional business team is available 24 hours online to serve you |
Fast delivery strategy | sufficient inventory. It will take 3-5 working days after receiving your advance payment if items are in stock. |
Customized service | according to your requirements, different application, different parameters, product customization is available |
Great after-sales service | any condition affecting the use of the product during the warranty period will be replaced free of charge with NO EXCUSE. We guarantee unconditional technical support for life. |
| Technical details | |
| Measurement signal frequency range: | 0.4~40kHz |
Input AC signal: | >300mV |
transmission output: | 4 ~ 20mA or RS485 (load ≤ 750Ω) accuracy is better than ± 1% F.S |
working temperature: | -20 ~ 75 ° C; |
working humidity: | 5 ~ 90% |
the power supply voltage: | 24Vdc |
resolution: | 0.05% |
temperature drift: | ≤ 0.1% ° C |
protection level: | IP44 |
dimensions: | 30*79*56mm |
| YD240-A□□-B□□-C□□-D□□ | |||
| A range | B signal access | C pulses per revolution | D output signal |
01:0-1000r/min | 01: Connect YD9800 eddy current sensor | 01: 1 pulse | 01:4-20mA |
