The YD9720 integrated two-axis vibration transmitter is a vibration velocity transmitter developed and improved by our company on the basis of many years of practical experience and engineering applications. On the basis of piezoelectric acceleration sensor, a precision integrating circuit is embedded inside. Compared with the traditional magnetoelectric sensors, due to the use of piezoelectric crystals as sensitive components, there are no moving parts inside, no degradation and wear, mechanical moving parts are not easily damaged, and the frequency response range is wide, the dynamic characteristics are excellent, and the anti-interference ability is strong. It can work reliably for a long time, suitable for measuring the absolute (relative to the free surface) vibration of the bearing box, shell or structure under various harsh environments in the industrial field.

This type of product has a wide range of applications and measurement prospects in vibration monitoring of rotating machinery, engineering geology, seismic monitoring, vibration and modal analysis of high-rise buildings and large structures, traffic bridges, scientific research, teaching and other fields.

Usage and Precautions

Since the sensor has a built-in circuit, it is not allowed to use high voltage to test the insulation resistance between the core and the housing of the sensor. This will easily cause the sensor to breakdown and damage. Please remember, otherwise the company will not be replaced if it is damaged. The simple judgment method is: use the resistance file of the multimeter to test, the forward direction is about tens of KΩ ~ 100KΩ, and the reverse direction is infinite.

The verification test conditions of our sensor are: 160Hz, 4mA, 10ms-2, 20±5℃.

The sensor does not need to be adjusted or locked during use, and it is convenient to use, but it is recommended to avoid falling as much as possible during use, which may cause excessive impact and damage. Please pay attention.

Since the sensor is a precision transducer instrument, please pay attention to moisture prevention, especially moisture and pollution at the plug and socket.

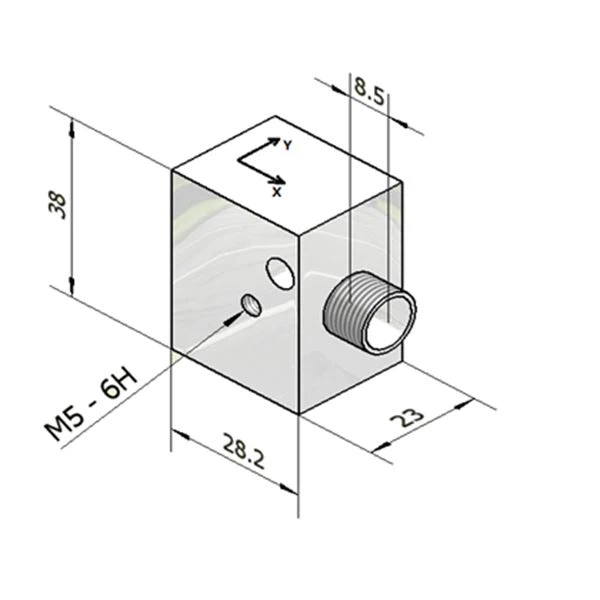

Two-axis Vibration Transmitter

Technical details
Measuring range	0-100mm/s ※ 0-50g ※ 0-8000um
Output current	4-20mA
Response frequency	10 ~ 1000Hz(vibration velocity) 2 ~ 2000Hz(vibration acceleration)
Ambient temperature	-30℃-+85℃(specially customized for high temperature)
Power supply voltage	+12~+24VDC
Piezoelectric material	PZT-5
Weight	About 110g
Velocity direction	Sensor (X, Y) two-way
Output mode	Direct lead / 5/8-24 four-pin socket
Housing material	Stainless steel
Installation thread	M5 thread, or magnetic base (or special order)

Applications
Industrial automation	Fans, Blowers, Motors, Compressors, Centrifuges, Turbochargers, Pumps; Generators; Gear Box; Engines, etc.
Transportation	Speed measurement for cars, trains, high-speed rails, etc.
Transportation	Bridge health monitoring
Others	Military and aviation fields，etc.

Service
Instant reply	Professional business team is available 24 hours online to serve you
Product warranty period	Up to 18 months
Minimum order quantity	1 sample quantity, convenient for you to test product
Fast delivery strategy	Sufficient inventory. It will take 3-5 working days after receiving your advance payment if items are in stock.
Customized service	According to your requirements, different application, different parameters, product customization is available
Great after-sales service	Any condition affecting the use of the product during the warranty period will be replaced free of charge with NO EXCUSE. We guarantee unconditional technical support for life.
